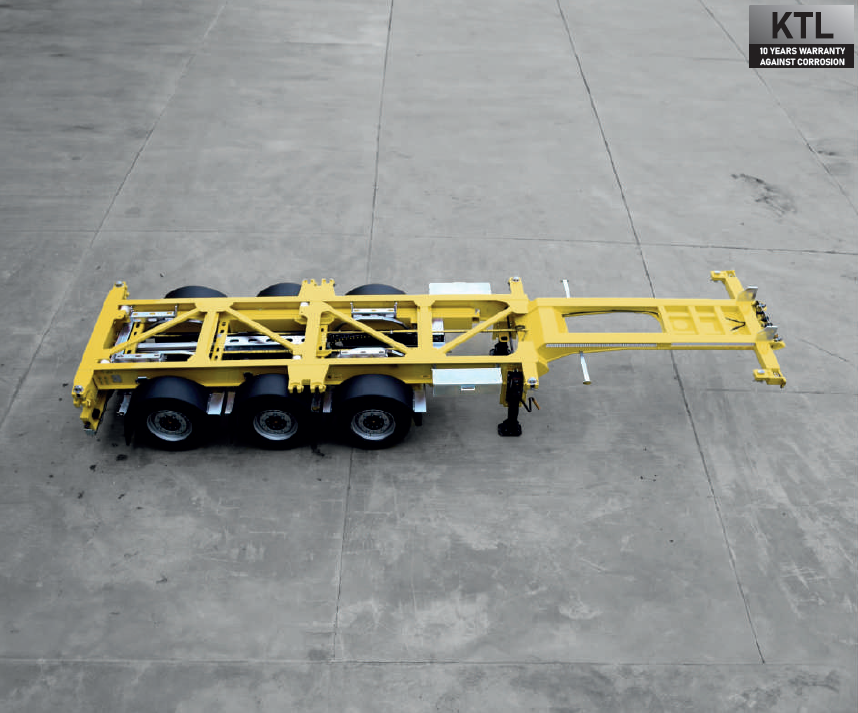

| Chassis | Optimal gravity and stability between long beams
|

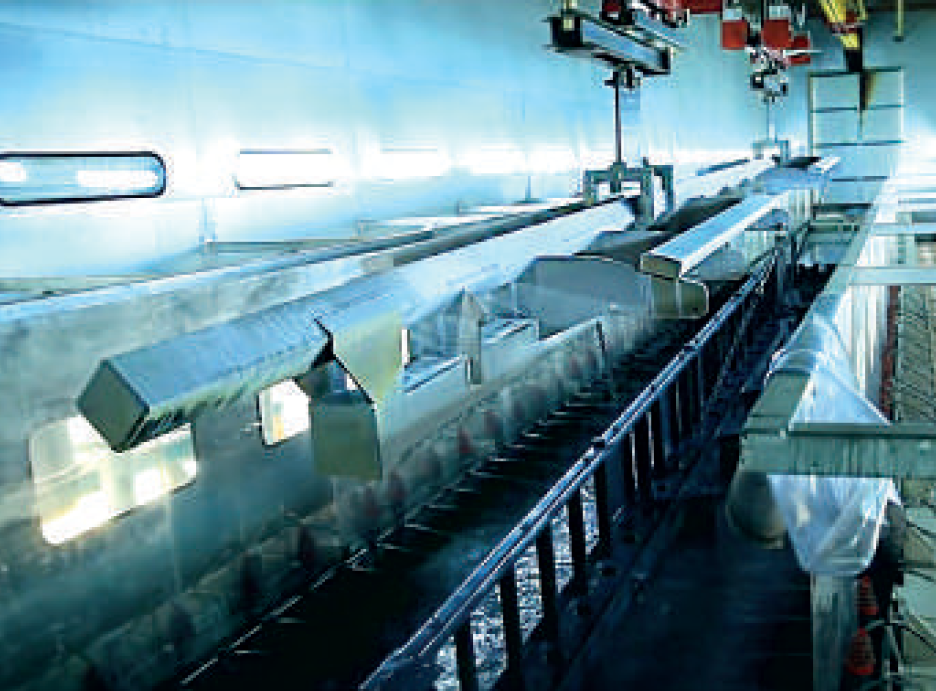

| Painting | +10 Years Rust Proof warranty
|
| Coupling | Ø 2” (50.8 mm) coupling point conformant to SAE and DIN 74/08 Standards
|
| Axles | 3 x 9 ton capacity 120 mm offset disc brake air suspension axle sets; Automatic and manual lifting system on the first axle; The axle can be lifted by braking 3 times and pressing the button
|
| Landing Gears | Telescopic landing gears with 24 tonnes capacity and two-speed landing gears painted in black
|
| Brake System & Lifting Axle | EBS-brake system with 2 modules and 2 sensors (2S/2M) according to Regulation UNECE R13.11; RSS (Road Stability Support) system; Pneumatic brakes with double circuit; Suspension system with manual lowering & lifting valves
|

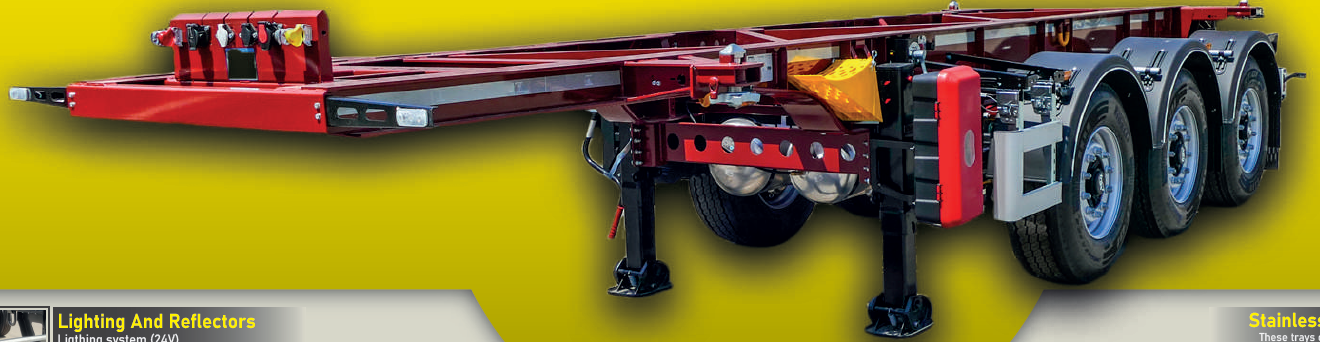

| Lighting System | Lighting system with 24 Volt according to Regulation ECE R48.06; LED side, front, and back marker lamps with reflectors; Reflective band located on sides and at the rear; Bulkhead division with 2x7 pole DIN ISO 1185 and DIN ISO 3731 or 1x15 pole DIN ISO 12098
|
| Tyres and Rims | 6 pieces Steel Rims with 120 offset; 6 pieces of tyres 385/65 R 22.5 conformant to 458/2011 EU; Rims painted in silver RAL 9006
|
| Tank Positions | 1x20 Ft Tank container & 20 Ft ISO & 25 Ft Jumbo Tank
|

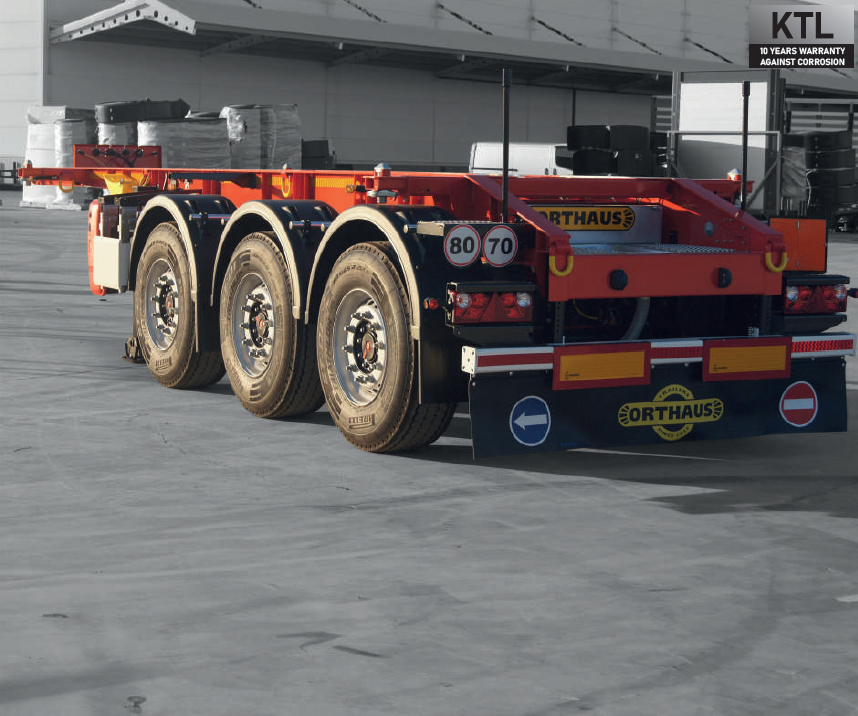

| Rear Bumper | Ergonomic and reinforced rear bumper in curved type with 4 steps
|
| Included Accessories of Chassis | 6 pieces of mudguards conformant to 2015/166/EU + 6 pieces of anti-spray mud guards; 2 pieces yellow wheel chocks with holder; 1 pcs document holder tube; 1 pcs fire extinguisher box; 1 pcs Stainless Steel Drip Tray
|
| Admission Plates | Vehicle satisfies the ECE type-test with Certificate of Conformity (COC); Authorized in “REPUBLIC of TURKEY”; Two reflector plates horizontally placed on the rear wall (565x200 ECE R70.01) |
